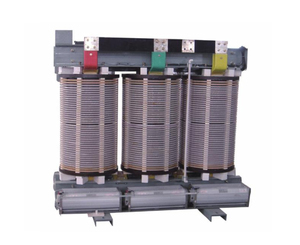

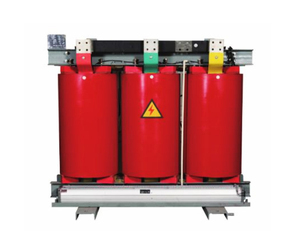

10kV SC(B)10 Series Epoxy Resin Cast Dry-Type Transformer
Product description:
The 10KV SC(B)10 series epoxy resin cast dry-type transformer is a type of transformer that relies on air convection for cooling. With the continuous growth of urban power supply load, the increasing density of residential buildings and the rise of high-rise and underground structures, there is an urgent need for a transformer that is located deep within the load center, fireproof, explosion-proof, and environmentally friendly. The dry-type transformer has taken on this role.
Product features:
High mechanical strength and strong short-circuit resistance; good moisture resistance, can operate at 100% humidity, no preheating treatment required before commissioning, and no dehumidification treatment required for intermittent operation; small size, light weight, no cracking, no mottled surface, and low partial discharge; high insulation level and good resistance to lightning impulse; maintenance-free; strong heat dissipation capacity, can operate at 150% rated load under forced air cooling conditions; flame retardant, explosion-proof, and pollution-free, can be directly installed at the load center.
Scope of application:
Suitable for modern commercial centers, residential communities, basements of high-rise buildings, public places, and other locations with high fire protection requirements.
Production Workshop:
